custom gear shafts

Gear Shafts and Pinions

Custom integral spur, helical, bevel, and worm pinion shafts for compact transmission assemblies.

Customization

100% to Drawing / Sample

Precision Grade

DIN 4-7 / AGMA 11-13

Engineering DFM

< 24 Hours Turnaround

Quality System

ISO 9001:2015

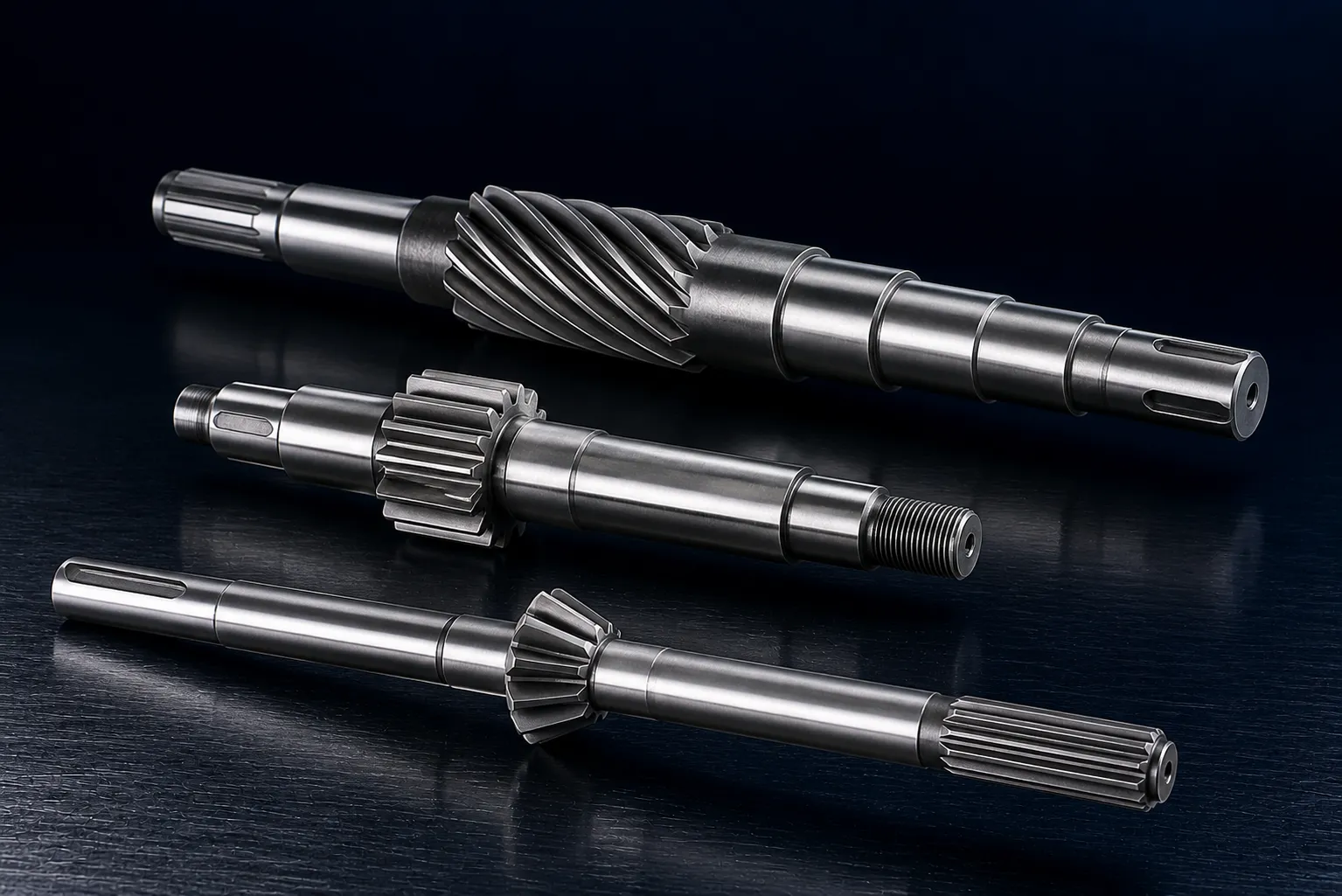

Custom integral gear shafts and pinions with machined bearing journals
Featured Product Model & RFQ Specifications

Custom Gear Shaft and Pinion

Integral gear shafts and pinion shafts combining precision gear tooth geometry with bearing journals, splines, and drive features on a single workpiece.

Product type

Integral spur pinion shaft, helical pinion shaft, bevel pinion shaft, or splined gear shaft

Manufacturing basis

Customer 2D/3D drawing, CAD model, or complete transmission shaft sample

Shaft dimensions

Shaft diameters from ร˜15 mm to ร˜200 mm, overall lengths up to 1500 mm

Gear tooth types

Spur, helical (RH/LH), straight bevel, spiral bevel, or single/multi-start worm pinion

Product Matrix

All Gear Shafts and Pinions Models & Replacement Series (3 Product Lines)

Browse specialized replacement series, OEM interchange families, and application-specific hydraulic gear pumps. Each product line includes complete model tables, displacement, pressure ratings, and port dimensions.

Custom integral helical pinion shaft with machined bearing journals and ground teeth
custom gear shaft manufacturer

Custom Gear Shaft and Pinion

Integral gear shafts and pinion shafts combining precision gear tooth geometry with bearing journals, splines, and drive features on a single workpiece.

Product type: Integral spur pinion shaft, helical pinion shaft, bevel pinion shaft, or splined gear shaft Manufacturing basis: Customer 2D/3D drawing, CAD model, or complete transmission shaft sample
Custom engine balance shaft with integrated helical gear and precision ground bearing journals
custom engine balance shafts

Custom Engine Balance Shafts

High-precision engine counter-balance shafts with integrated drive gears, eccentric weights, and induction-hardened bearing journals for smooth, vibration-free engine operation.

Component Type: Integral eccentric counter-balance shaft with precision drive gear Manufacturing Basis: Customer CAD drawings (STEP, DWG), forging prints, or master samples
ZhongYi matched drive shaft and pinion pair with precision ground bearing journals and involute splines
custom drive shafts and pinion pairs

Custom Intermeshing Drive Shafts & Pinion Shaft Pairs

Precision matched pairs of drive shafts and integral pinion shafts (male & female axis) designed for dual-axis speed reducers, multi-stage gearboxes, and twin-screw mechanisms.

Product Configuration: Matched drive shaft pairs, integral pinion shafts, and stepped gear shafts Diameter Range: Journal diameter ร˜15 mm - ร˜180 mm; gear head diameter up to ร˜320 mm

Manufacturing capability

Technical Overview & Engineering Capability for custom gear shafts.

Custom gear shafts combine tooth geometry with bearing seats, shoulders, splines, threads, keyways, oil features, and other shaft details in one component. Integrating the pinion and shaft can reduce joints and assembly stack-up, but it also makes datum control, heat-treatment distortion, straightness, and machining sequence more important. ZhongYi reviews custom gear shafts from complete drawings or samples, including gear type, module or DP, tooth count, helix or bevel data, shaft diameters, bearing fits, axial locations, material, heat treatment, hardness zones, finishing, runout, and inspection requirements.

Tooth Accuracy DIN 4-7 / AGMA 11-13
Tooth Finishing CNC Ground (Ra โ‰ค0.4ยตm)
Heat Treatment Carburized 58-62 HRC

Product types & variants

Gear Shafts and Pinions types and manufacturing paths.

The final product form is confirmed from the buyer drawing, mating component, assembly layout, operating conditions, and inspection requirements.

Spur pinion shafts

Straight-tooth pinions integrated with bearing journals and mounting features for parallel-shaft drives.

Helical pinion shafts

Angled-tooth shaft components requiring helix, axial-load, bearing, heat-treatment, and datum review.

Bevel pinion shafts

Angular-drive pinions controlled as part of a matched bevel pair and a defined mounting-distance arrangement.

Worm shafts

Single- or multi-start worm geometry integrated with shaft journals, shoulders, threads, and drive features.

Engine Counter-Balance Shafts

Dynamic balance shafts with integral ground spur or helical gears and eccentric counterweights for automotive and diesel engines.

Intermeshing Drive Shaft Pairs

Matched male and female drive shafts, counter-rotating transmission shafts, and multi-stage reduction pinion shafts.

Selection & Metallurgy guidance

How to specify the correct gear shafts and pinions configuration.

A gear shaft drawing should define functional datums and the relationship between the gear teeth, bearing journals, shoulders, and drive features. Identify which surfaces are finished before or after heat treatment and where hardness is required or prohibited. Bearing fits, seal surfaces, threads, splines, keyways, center holes, lubrication features, and allowable runout should be stated. The RFQ should also include mating gears, bearing layout, transmitted torque, bending load, speed, duty cycle, and assembly method so manufacturing feasibility can be reviewed responsibly.

Material & Heat Treatment Options

  • Carbon steel for general machined shafts
  • Alloy steel for specified heat treatment and fatigue duty
  • Stainless steel for selected environmental requirements
  • Buyer-specified material supported by technical documentation

Engineering Selection Factors

  • Gear geometry and mating component
  • Bearing seats, fits, shoulders, threads, splines, and keyways
  • Material, heat treatment, case depth, hardness, and distortion
  • Straightness, concentricity, runout, surface finish, and datums
  • Load, bending, torsion, speed, lubrication, and assembly sequence

Quality Control & Inspection Matrix

Engineering Evidence & 100% Inspection for Gear Shafts and Pinions.

Overseas procurement teams require verifiable technical data, not unsupported claims. Every production batch at ZhongYi is inspected against approved CAD blueprints and international standards (DIN, AGMA, ISO).

Component-Specific Quality Focus:

Gear shaft quality depends on transparent process and datum control. ZhongYi can review the drawing revision, material, blank route, machining sequence, heat-treatment zones, finish grinding, straightening allowance, and inspection plan. Depending on the approved requirements, checks may cover journal diameters, fit and surface finish, straightness, concentricity, gear runout, tooth measurements, hardness, thread gauges, spline data, and final dimensional reports. No fatigue life, fit class, or case-depth value is assumed when it is absent from the technical file.

Coordinate Metrology

Zeiss / Hexagon 3D CMM

Validates 3D spatial GD&T, bore concentricity, center distance, and geometric tolerances down to ยฑ0.002 mm.

Tooth Geometry Analysis

Klingelnberg CNC Gear Analyzer

Inspects involute tooth profile error (fฮฑ), lead crowning (fฮฒ), pitch cumulative error (Fp), and radial runout (Fr).

Hardness & Case Depth

Digital Micro-Vickers & Rockwell Testers

Verifies surface hardness (58โ€“62 HRC), core toughness, and effective carburized / nitrided case depth gradient.

Chemical Metallurgy

Direct-Reading Optical Spectrometer

100% chemical composition verification of alloy steel forgings (20CrMnTi, 42CrMo, 18CrNiMo7-6, Stainless, POM).

Inspection Deliverables with Every Shipment

Complete Batch Traceability & Certified Test Reports

  • EN 10204 Type 3.1 Mill Test Certificate (Chemical & Mechanical Properties)
  • Zeiss 3D CMM Full Dimensional Inspection Sheet
  • Klingelnberg Tooth Profile & Lead Crowning Graph Report
  • Effective Carburized Case Depth & Hardness Curve Data
  • 100% Pre-Shipment Visual, Thread & Anti-Rust Quality Verification

Our Factory Quality Commitment:

We maintain strict incoming material spectroscopy, in-process CNC tooth coordinate monitoring, and 100% final pre-shipment dimensional inspection. All custom gear batches are backed by our full manufacturing warranty.

ISO 9001:2015 Certified
DIN 4-7 / AGMA 11-13 Standards

Application fit

Gear Shafts and Pinions operating environments.

Match the gear type with real machinery conditions, operating environment, load, speed, and replacement requirements.

  • Reducers and enclosed gearbox assemblies
  • Vehicle, motorcycle, and agricultural transmissions
  • Pumps, machinery drives, and automation equipment
  • Replacement pinion shafts and integrated drive components
Application Markets

Where Gear Shafts and Pinions Are Engineered & Deployed

Discover how this gear category meets extreme torque, low backlash, quiet operation, and weather-resistance demands in primary industry sectors:

View All 5 Industry Hubs โ†’

Technical FAQ

Common technical and purchasing questions for Gear Shafts and Pinions.

These answers support early engineering and procurement review. Final dimensions, materials, tolerances, and process requirements are confirmed against the approved drawing file.

What makes a gear shaft different from a separate gear and shaft? โ–ผ

The tooth form is manufactured directly on the shaft or pinion blank, removing a separate gear-to-shaft joint. This can improve compactness but increases the importance of bearing datums, heat-treatment distortion, straightness, and process sequence.

Which shaft dimensions are most important for quotation? โ–ผ

Provide bearing-seat diameters and fits, shoulder positions, overall length, threads, splines, keyways, center holes, seal surfaces, gear geometry, runout, material, heat treatment, surface finish, and quantity.

Can an integral pinion shaft be made from a sample? โ–ผ

A sample can be reviewed, but bearing wear, bent shafts, tooth wear, and previous repairs may hide original dimensions. Assembly drawings, mating gears, bearings, and historic inspection data are valuable.
