Plastic spur gears
Straight-tooth components for light and moderate duties within the selected polymer load and temperature limits.
China Plastic Gears Manufacturer
Plastic Gears
Custom engineering-plastic gears and racks for low-mass, corrosion-conscious, or low-lubrication mechanisms.
Source Factory
China Direct (2,800m² Plant)
Precision Grade
DIN 4-7 / AGMA 11-13
Engineering DFM
< 24 Hours Turnaround
Quality System
ISO 9001:2015
Featured Product Model & RFQ Specifications

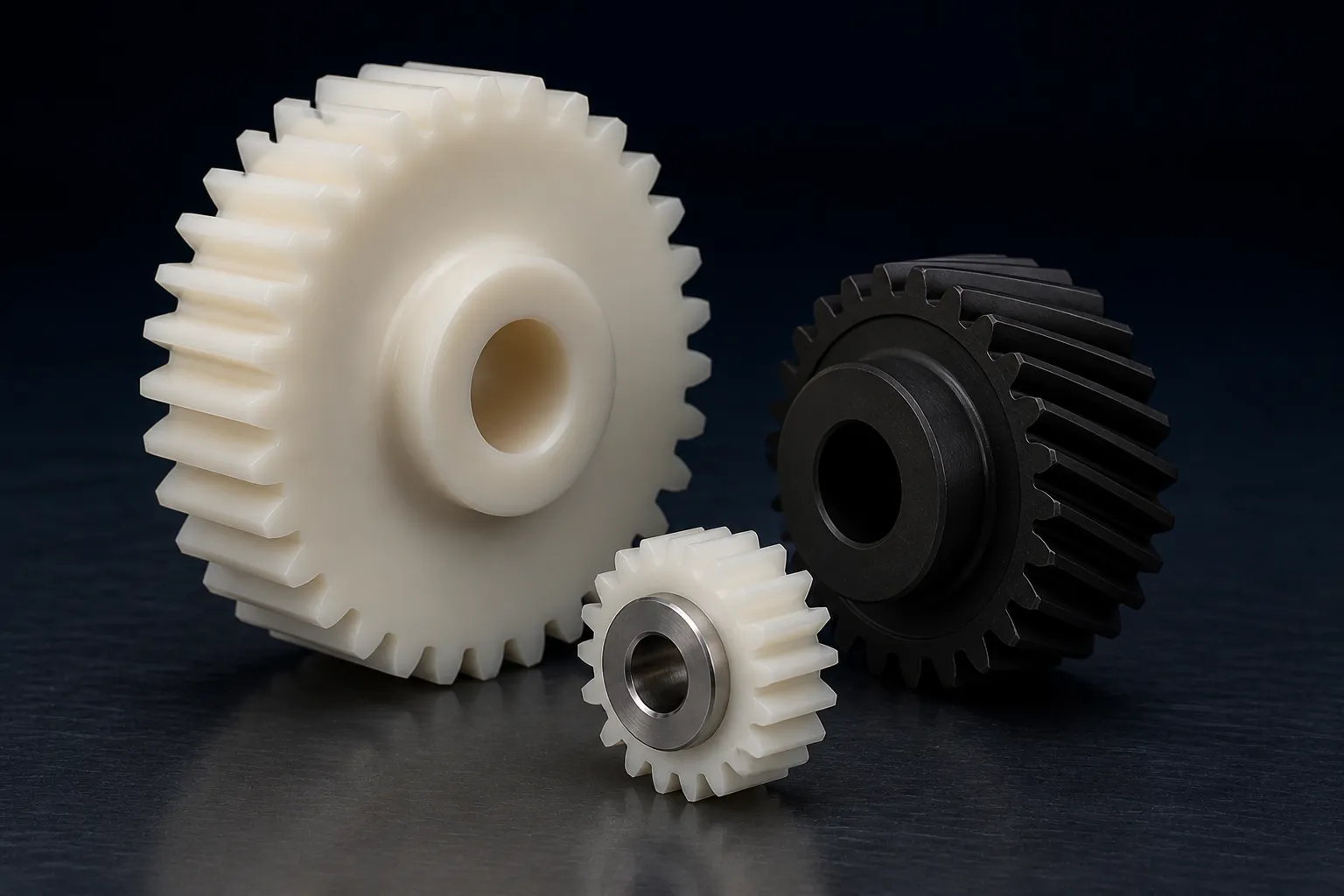

Custom Plastic Gears
China precision CNC machining factory for custom POM (Delrin), nylon (PA66), and PEEK gears for quiet, self-lubricating, and corrosion-resistant drives.
Product type
Custom plastic spur gears, helical gears, bevel gears, worm wheels, and plastic gear racks
Polymer materials
POM / Delrin / Acetal, PA6 / PA66 Nylon (natural, MoS2-filled, glass-filled), PEEK, PTFE
Metal inserts
Brass, carbon steel, or stainless steel knurled hubs/bushings integrated by press-fit or overmolding
Tooth parameters
Module (M0.5 - M8), pressure angle (20°), optimized tooth thickness and tip relief for polymer deflection
Manufacturing capability
Technical Overview & Engineering Capability for China Plastic Gears Manufacturer.
As an ISO 9001 certified China gear manufacturer and direct machining factory in Zhejiang, ZhongYi produces custom engineering-plastic gears from buyer CAD drawings and samples. Custom plastic gears can reduce mass, operating noise, and corrosion concerns in suitable mechanisms. ZhongYi reviews plastic gear enquiries for tooth form, module, tooth count, face width, bore, hub or insert design, material, operating temperature, moisture exposure, load, speed, duty cycle, and dimensional tolerance.
Tooth AccuracyDIN 4-7 / AGMA 11-13
Tooth FinishingCNC Ground (Ra ≤0.4µm)
Heat TreatmentCarburized 58-62 HRC
Product types & variants
Plastic Gears types and manufacturing paths.
The final product form is confirmed from the buyer drawing, mating component, assembly layout, operating conditions, and inspection requirements.
Plastic racks and pinions
Linear-motion parts where straightness, moisture response, mounting support, and thermal expansion need design allowance.
Plastic bevel and miter gears
Angular-drive components for suitable loads, with hub stiffness, pair alignment, and tooth contact reviewed.
Plastic worm wheels and screw gears
Sliding-contact components where material compatibility, heat, lubrication, wear, and mating surface finish are critical.
Selection & Metallurgy guidance
How to specify the correct plastic gears configuration.
Specify the real service environment before choosing a polymer. Temperature, humidity, water absorption, chemicals, cleaning agents, UV exposure, and continuous load can change dimensions and strength. Plastic teeth may need a different face width, backlash, or hub design from a metal equivalent. Confirm whether the gear is machined from stock, moulded, or combined with a metal insert, and identify expected quantity because the manufacturing route affects tooling and tolerance planning. Food-contact or flame requirements must be documented rather than inferred.
Material & Heat Treatment Options
- Nylon grades where toughness and wear behaviour suit the design
- Acetal or POM for dimensional stability in selected applications
- PEEK or other engineering polymers only when specified and reviewed
- Steel or stainless inserts for defined hub and shaft connections
Engineering Selection Factors
- Polymer grade, temperature, moisture, chemicals, and UV exposure
- Load, speed, duty cycle, shock, and expected service life
- Module, tooth count, face width, backlash, and mating material
- Bore, insert, hub, keyway, press fit, and creep risk
- Machined or moulded route, quantity, tolerance, and inspection
Quality Control & Inspection Matrix
Engineering Evidence & 100% Inspection for Plastic Gears.
Overseas procurement teams require verifiable technical data, not unsupported claims. Every production batch at ZhongYi is inspected against approved CAD blueprints and international standards (DIN, AGMA, ISO).
Component-Specific Quality Focus:
Trustworthy plastic gear content must address material traceability and dimensional behaviour without making unsupported compliance claims. ZhongYi can review polymer designation, drawing revision, machining or moulding route, insert retention, bore and tooth datums, environmental conditions, and inspection requirements. Checks may include dimensions at a stated condition, tooth thickness, runout, insert position, appearance, and mating function when specified. Certifications, food-contact status, flame rating, colour, and test data are included only when the selected material and order documentation support them.
Coordinate Metrology
Zeiss / Hexagon 3D CMM
Validates 3D spatial GD&T, bore concentricity, center distance, and geometric tolerances down to ±0.002 mm.
Tooth Geometry Analysis
Klingelnberg CNC Gear Analyzer
Inspects involute tooth profile error (fα), lead crowning (fβ), pitch cumulative error (Fp), and radial runout (Fr).
Hardness & Case Depth
Digital Micro-Vickers & Rockwell Testers
Verifies surface hardness (58–62 HRC), core toughness, and effective carburized / nitrided case depth gradient.
Chemical Metallurgy
Direct-Reading Optical Spectrometer
100% chemical composition verification of alloy steel forgings (20CrMnTi, 42CrMo, 18CrNiMo7-6, Stainless, POM).
Inspection Deliverables with Every Shipment
Complete Batch Traceability & Certified Test Reports
- EN 10204 Type 3.1 Mill Test Certificate (Chemical & Mechanical Properties)
- Zeiss 3D CMM Full Dimensional Inspection Sheet
- Klingelnberg Tooth Profile & Lead Crowning Graph Report
- Effective Carburized Case Depth & Hardness Curve Data
- 100% Pre-Shipment Visual, Thread & Anti-Rust Quality Verification
Our Factory Quality Commitment:
We maintain strict incoming material spectroscopy, in-process CNC tooth coordinate monitoring, and 100% final pre-shipment dimensional inspection. All custom gear batches are backed by our full manufacturing warranty.
ISO 9001:2015 Certified
DIN 4-7 / AGMA 11-13 Standards
Application fit
Plastic Gears operating environments.
Match the gear type with real machinery conditions, operating environment, load, speed, and replacement requirements.
- Food and packaging machinery components where material is approved
- Office, instrumentation, and light automation mechanisms
- Low-mass or quieter gear trains
- Corrosion-conscious and limited-lubrication applications
Application Markets
View All 5 Industry Hubs →Where Plastic Gears Are Engineered & Deployed
Discover how this gear category meets extreme torque, low backlash, quiet operation, and weather-resistance demands in primary industry sectors:
🏗️Heavy-Duty & High-Impact Transmission
Construction & Mining Machinery
High-torque, impact-resistant gears, girth rings, and planetary drive sets engineered for excavators, cranes, drilling rigs, and heavy mining crushers.
🤖Sub-Arcminute Motion & Dynamic Positioning
Automation & Robotics
Low-backlash, ultra-precise fine-pitch gears, ground helical racks, and planetary gearheads for robotics, AGV wheel drives, and high-speed motion axes.
🌾Rugged Heavy-Torque Transmission
Agriculture & Farm Equipment
High-torque bevel gears, spur gears, and splined drive shafts for tractors, harvesters, rotary tillers, and agricultural PTO gearboxes.
Technical FAQ
Common technical and purchasing questions for Plastic Gears.
These answers support early engineering and procurement review. Final dimensions, materials, tolerances, and process requirements are confirmed against the approved drawing file.
Why choose ZhongYi as your China plastic gear manufacturer?▼
ZhongYi offers both CNC precision machining from engineering polymer rods/plates and custom tooling/moulding capabilities with insert-moulding expertise, providing rapid prototypes and high-volume production with verified tolerances.
Can a plastic gear directly replace a steel gear?▼
Not automatically. The polymer has different stiffness, thermal expansion, moisture response, wear behaviour, and allowable stress. The tooth width, backlash, hub, bearing support, temperature, and mating material should be reviewed.
Which information is needed to select a plastic material?▼
Provide temperature range, load, speed, duty cycle, moisture and chemical exposure, lubrication, noise target, dimensional tolerance, mating material, regulatory requirements, quantity, and expected life.
Should a plastic gear use a metal hub or insert?▼
An insert can improve the shaft connection in some designs, but it also introduces stress, thermal-expansion differences, and retention requirements. The correct approach depends on torque, bore size, fastening method, and polymer properties.
24-Hour Engineering Quote & DFM Review
Upload Your Drawings for Plastic Gears Manufacturing
Send your 2D blueprints or 3D CAD models. Our senior gear engineering team will review tooth geometry, module/pitch, materials, heat treatment feasibility, and provide transparent factory pricing within 24 hours.
Supported CAD Blueprint & Drawing Formats:
STEP (.step / .stp)AutoCAD (.dwg / .dxf)IGES (.igs)SolidWorks / 3D CADPDF Technical BlueprintsWorn Physical Samples
Mutual NDA Protection
We sign strict Non-Disclosure Agreements to safeguard proprietary designs.
< 24h DFM Feedback
Rapid manufacturability review, tolerance checks, and unit quotation.
Direct Factory Engineering
Direct technical communication with senior master gear artisans.
